Aircraft Eyes and Forks

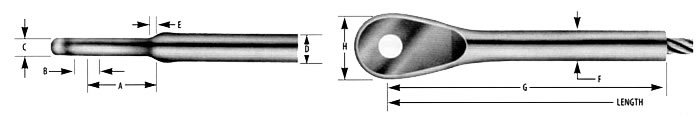

Aircraft Eye Fitting (MS20668)

Aircraft Eye Fitting (MS20668)
Part No. Cable Dia. Min. Break Str. Lbs. A
+.020
B
Dia.
B
Tol.
C
Dia.
C
Tol.
D E F
Dia.
F
Tol.
G
Ref.
H
MS20668-2 1/16 480 .523 .190 +.002
-.000
.088 +.000
-.005
.160 .072 .138 +.000
-.005
1.809 .359
MS20668-3 3/32 920 .707 .190 +.002
-.000
.103 +.000
-.005
.218 .092 .190 +.000
-.005
2.160 .438
MS20668-4 1/8 2000 .738 .190 +.002
-.000
.190 +.000
-.005
.250 .103 .219 +.000
-.005
2.593 .500
MS20668-5 5/32 2800 .831 .250 +.002
-.000
.197 +.000
-.005
.297 .131 .250 +.000
-.005
3.029 .640
MS20668-6 3/16 4200 .903 .313 +.002
-.000
.255 +.000
-.005
.359 .155 .313 +.000
-.005
3.187 .781
MS20668-7 7/32 5600 1.007 .313 +.002
-.000
.291 +.000
-.005
.427 .187 .375 +.000
-.007
3.678 .813
MS20668-8 1/4 7000 1.133 .375 +.002
-.000
.307 +.000
-.005
.494 .221 .438 +.000
-.007
4.062 .968
MS20668-9 9/32 8000 1.257 .438 +.002
-.000
.322 +.000
-.005
.563 .251 .500 +.000
-.008
4.512 1.109
MS20668-10 5/16 9800 1.373 .438 +.002
-.000
.343 +.000
-.005
.635 .281 .563 +.000
-.008
4.969 1.218
MS20668-12 3/8 14400 1.688 .500 +.005
-.000
.375 +.000
-.015
.703 .320 .625 +.000
-.008
5.968 1.500
MS20668-14 7/16 17600 1.968 .562 +.005
-.000
.375 +.000
-.015
.781 .350 .688 +.000
-.008
6.867 1.750

Aircraft Jaw Fitting (MS20667)

Aircraft Jaw Fitting (MS20667)
Part No. Cable Dia. Min. Break Str. Lbs. A
Dia.
A
Tol.
B
+.010
-.005
C
+.003
D E F
Dia.
F
Tol.
G
Ref.
H
MS20667-2 1/16 480 .190 +.002
-.000
.218 .093 .500 .160 .138 +.000
-.005
1.750 .344
MS20667-3 3/32 920 .190 +.002
-.000
.254 .108 .670 .218 .190 +.000
-.005
2.062 .438
MS20667-4 1/8 2000 .190 +.002
-.000
.383 .195 .735 .250 .219 +.000
-.005
2.608 .547
MS20667-5 5/32 2800 .250 +.002
-.000
.406 .202 .800 .297 .250 +.000
-.005
3.000 .688
MS20667-6 3/16 4200 .313 +.002
-.000
.543 .260 .880 .359 .313 +.000
-.005
3.239 .781
MS20667-7 7/32 5600 .313 +.002
-.000
.625 .296 .970 .427 .375 +.000
-.007
3.736 .906
MS20667-8 1/4 7000 .375 +.002
-.000
.688 .313 1.070 .494 .438 +.000
-.007
4.105 .969
MS20667-9 9/32 8000 .438 +.002
-.000
.719 .327 1.170 .563 .500 +.000
-.008
4.479 1.156
MS20667-10 5/16 9800 .438 +.002
-.000
.765 .348 1.268 .635 .563 +.000
-.008
4.860 1.265
MS20667-12 3/8 14400 .500 +.005
-.000
.830 .380 1.525 .703 .625 +.000
-.008
5.746 1.500
MS20667-14 7/16 17600 .562 +.005
-.000
.830 .380 1.776 .781 .688 +.000
-.008
6.575 1.750
