American Made

Ball Fittings

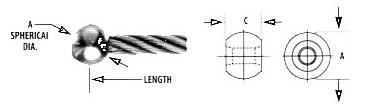

Stainless Steel Plain Ball

Stainless Steel Plain Ball
Part No. Rope Dia. A AS
C Min. Break Str. Lbs
1001-01.5 3/64 .211
.208
.188 .141
.137
215
1001-02 1/16 .211
.208
.188 .141
.137
385
1001-03 3/32 .288
.284
.250 .174
.170
735
1001-04 1/8 .355
.351
.313 .190
.184
1,200
1001-05 5/32 .429
.425
.375 .227
.222
1,680
1001-06 3/16 .498
.493
.438 .264
.259
2,520

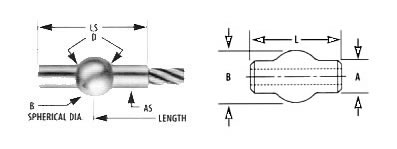

Ball and Double Shank MS20663-C

Ball Shank
Part No. Cable Dia. Min. Break Str. Lbs. A
AS
Dia.
AS
Tol.
B BS
Spher.
Dia.
BS
Tol.
L LS
Ref.
D
Max.
Rad.
MS20663-C2 1/16 480 .127 .112 +.000
-.003
.207 .190 +.000
-.003
.362 .390 .014
MS20663-C3 3/32 920 .163 .143 +.000
-.003
.277 .253 +.000
-.003
.525 .578 .019
MS20663-C4 1/8 2000 .218 .190 +.000
-.003
.345 .315 +.000
-.003
.688 .765 .023
MS20663-C5 5/32 2800 .254 .222 +.000
-.004
.419 .379 +.000
-.004
.850 .953 .028
MS20663-C6 3/16 4200 .293 .255 +.000
-.005
.487 .442 +.000
-.005
1.012 1.140 .033
MS20663-C7 7/32 5600 .347 .302 +.000
-.005
.555 .505 +.000
-.005
1.175 1.328 .038
MS20663-C8 1/4 7000 .401 .348 +.000
-.005
.624 .567 +.000
-.005
1.337 1.515 .042
MS20663-C9 9/32 8000 .439 .382 +.000
-.007
.694 .632 +.000
-.007
1.497 1.719 .046
MS20663-C10 5/16 9800 .475 .413 +.000
-.007
.763 .694 +.000
-.007
1.664 1.880 .046

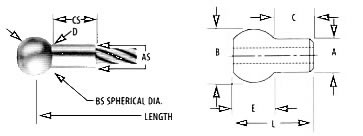

Ball and Single Shank MS20664-C

Ball and Single Shank
Part No. Cable Dia. Min. Break Str. Lbs. A
AS
Dia.
AS
Tol.
B BS
Spher.
Dia.
BS
Tol.
CS
Ref.
D
Max.
Rad.
E L
MS20664-C2 1/16 480 .132 .112 +.000
-.003
.212 .190 +.000
-.003
.156 .014 .114 .2685
MS20664-C3 3/32 920 .168 .143 +.000
-.003
.282 .253 +.000
-.003
.234 .019 .152 .384
MS20664-C4 1/8 2000 .223 .190 +.000
-.003
.350 .315 +.000
-.003
.313 .023 .1895 .500
MS20664-C5 5/32 2800 .259 .222 +.000
-.004
.424 .379 +.000
-.004
.391 .028 .2275 .616
MS20664-C6 3/16 4200 .298 .255 +.000
-.005
.492 .442 +.000
-.005
.469 .033 .2645 .730
MS20664-C7 7/32 5600 .352 .302 +.000
-.005
.560 .505 +.000
-.005
.547 .038 .3025 .846
MS20664-C8 1/4 7000 .406 .348 +.000
-.005
.629 .567 +.000
-.005
.625 .042 .3395 .962
MS20664-C9 9/32 8000 .444 .382 +.000
-.007
.699 .632 +.000
-.007
.750 .046 .3775 1.078
MS20664-C10 5/16 9800 .480 .413 +.000
-.007
.768 .694 +.000
-.007
.813 .046 .4145 1.193
