NOTICE:

Apply the initial load and re-tighten nuts to the recommended torque. Rope will stretch and shrink in diameter when loads are applied. Inspect periodically and re-tighten. The tightening torque values shown are based upon the threads being clean, dry, and free of lubrication.



Step 1

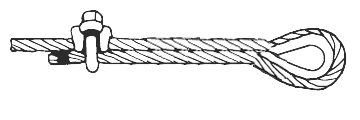

Turn back the specified amount of rope from the thimble. Apply the first clip one base width from the dead end of the wire rope (U-bolt over dead end - live end rests in clip saddle). Tighten nuts evenly to recommended torque.

Step 2

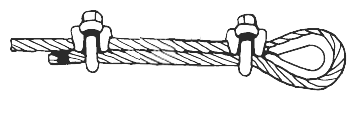

Apply the next clip as near the loop as possible. Turn on nuts firm but do not tighten.

Step 3

When these instructions require more than two clips- space additional clips equally between the first two - take up rope slack - tighten all nuts evenly on all clips to recommended torque.


Galvanized Malleable Clips

Clip Size - Inches   Min. Number of Clips Amount of Rope to Turn Back (ins.) Torque in ft. and lbs.*
1/16"-3/32" 2 3" 2.5
1/8" 3 4-3/4" 3.0
3/16" 3 5-1/2" 4.5
1/4" 3 7" 15
5/16" 3 7-3/4" 15
3/8" 3 9-1/2" 30
7/16" 3 10-1/4" 40
1/2" 4 15-1/4" 45

* These clips are intended for use in making eye termination in right regular lay wire rope. Such an assembly is for non-critical light duty use where a small applied load is expected such as hand rails, fencing, guard lines, etc.

* If a greater number of clips are used than shown in the table, the amount of rope turn-back should be increased proportionately.

* Torque in Ft/Lbs. applies to new, clean and unlubricated threads.


Drop Forged and Stainless Steel CLips

Clip Size - Inches   Min. Number of Clips Amount of Rope to Turn Back (ins.) Torque in ft. and lbs.*
1/8" 2 3-/4" 4.5
3/16" 2 3-3/4" 7.5
1/4" 2 4-3/4" 15
5/16" 2 5-1/4" 30
3/8" 2 6-1/2" 45
7/16" 3 7" 65
1/2" 3 11-1/2" 65
5/8" 3 12" 95
3/4" 4 18" 130
7/8" 4 19" 225
1" 5 26" 225
